For a task at work, I’ve been writing an application that uses clang’s libclangTooling to parse source code and do a few relatively simple things from preprocessing and AST traversal. I’ll be writing more about this at a later date, but at the moment I can say that I’m impressed with what’s possible. There are many glitches/inconsistencies in the interfaces that are likely due to different contributors, and the documentation remains largely absent, but neither of these issues make it unusable.

The task at hand at the moment is producing unit testing skeletons from existing source code. Obviously there are other means of doing this, including commercial tools. But if writing your own tool, being able to do it with API calls to pieces of clang’s front end avoids a lot of nitty-gritty lexing and parsing details while having complete control over the output. And you get preprocessing for free. And my tool will accept most of clang’s command-line options, which means my tool can be fairly flexible; I can pass -D and -I options for preprocessor defines and include paths, for example. Those are passed to clang’s front end without any work on my part.

This post could easily be titled, “Don’t Party Like It’s 1998”. Even better, “Don’t Party Like It’s 2010”.

I have been working on embedded software for a number of years now. First as a hobby while my “day job” was decidedly not embedded (UNIX system software, large distributed systems, etc.). Then as my day job, specifically in embedded automotive software.

One of the problematic symptoms in automotive software is its use of the C language. This isn’t a C language issue: C is frequently the right tool for the job at hand in this space. The issue is that a great deal of C code I’ve seen in automotive for embedded targets is pre-1999 C. Completely absent of any of the useful features found in the 1999 C standard (ISO/IEC 9899:1999), which is going on 16 years of age. Nevermind the 2011 C standard (ISO/IEC 9899:2011). For what I’d call “No good reason.”

Many of the automotive embedded developers I’ve worked with in the past 8 years would not fare well on a test of their knowledge of ISO/IEC 9899:1999 (C99). This is a sad state of affairs, given that many of the features of C99 are just as useful (if not more so) in embedded development as they are anywhere else.

I say there’s no good reason because the toolchains were updated more than a decade ago. The “My toolchain doesn’t support C99” excuse lost its validity more than 10 years ago. Perhaps more cocerning to me is the fact that some of the developers who aren’t knowledgeable of C99 weren’t even in the profession in 1999. In fact some of them were not far out of preschool. This saddens me because these young engineers are our future and their industry appears to be content with stunted skill set development of their software engineers. It also points to an education issue. If a developer knew nothing about C until after 1999, why is it that they were taught a version of C that predates C99 by roughly 10 years (and in many cases, predates their birth)?

If you write code in C, in any industry, please don’t write your code is if it’s 1998. As I write this, it’s the end of 2014. Use C99 to your advantage!

And question industry initiatives that look backward as much as they look forward. A case in point: why are so many that are involved with Autosar still oblivious to <stdint.h>/<inttypes.h>? <stdbool.h>? Autosar was founded 4 years after C99 was ratified, and any toolchain worth using already had full C99 support. I’m using this example because at more than one place of employment, I’ve found every compiler in our toolchain to be fully C99 compliant (including optional features like extended integer types) yet found most (if not all) current projects with their own hand-coded “Platform_Types.h”, “Std_Types.h”, etc. with no sign of <stdint.h>/<inttypes.h>. If the objective here is job security (someone has to review and potentially tweak the hand-coded header files to port code from one architecture to another), I wish them luck. If they ever want to pursue a career outside of automotive, they’ll be lacking in the knowledge needed to be successful in the language they think they’ve mastered. 🙁

Before someone sends me a defensive email: I believe Autosar is a good thing. I believe in standardized interfaces, and have leveraged them to my advantage for my entire career. And there are some Autosar vendors that are using C99 wherever they can. But when you find a wart, don’t just blindly embrace it. Find a better way. Don’t create work for yourself; seek to eliminate it. It’s the nature of any good software developer to make the next project easier. Reviewing and possibly tweaking header files every time you need to port code to a different microcontroller isn’t a good use of your time nor the company’s money. Use <inttypes.h>/<stdint.h> in your application code. Why? Because it’ll work unchanged on every C99 compiler for every target. Including your PC for unit testing, simulation, etc. You still need Platform_Types.h for your Autosar modules, but please don’t do this kind thing that will have to be reviewed and possibly tweaked for every porting effort:

When you can do this ONCE and be guaranteed it will work for every single target (and has for the last 15+ years), saving future work:

In our own code base, which includes a fair amount of “carry-over” code from previous projects, there are some projects with literally 4 different typedefs equivalent to uint32_t. And the same for all other fixed-width integer types. More work every time someone wants to “carry over” any of that code to a new platform and finds it doesn’t work.

I continue to hear developers in my industry refer to //style comments as “C++” comments, and to insist that they not be used. To be blunt: get with the game. Those aren’t “C++” comments. Those are C comments and have been for more than 15 years. And they exist for good reason; they harbor a smaller set of the dangers of /* ... */ comments and involve less typing for a large class of comments (single-liners).

Then there’s <stdbool.h>. Use it. A while back I ran across some old code in our project that was carried over from another project, that disturbed me (NOTE: I’m easily disturbed by such things). It looked something like this:

I have to wonder how many decent C programmers literally weep when they see this kind of thing in their project, knowing that it hints at problems in the callers. Even for pre-1999 C, this breaks the spirit of boolean. If you need a uint8_t, by all means use it. But in this particular case, the right solution was simply:

If you’re a C programmer, don’t party like it’s 1998. Party like it’s at least 2000. Even better, like it’s at least 2011 (the year of _Noreturn, etc.). Get more work done is less time, and consider improvement a life-long process. If the code you write today isn’t significantly better (tighter, easier to read, more readily tested and proven, more reusable, etc.) than the code you wrote two years ago, something is seriously wrong. Regardless of your processes, writing good software is a craft. If you aren’t seeing continuous improvement throughout your career, you’re in a rut that you need to find a way to leave.

Not too long ago, we had an issue on my team that blackholed over a week of my time.

Spoiler alert: the overarching lesson here is to always question and improve your processes, lest they bite you.

I’m currently working on an embedded product with a small amount of safety requirements. As such, the target software must check the validity of the contents of ROM (containing code and constant data) on an ongoing basis. It also must check the stack for corruption or growth above a predetermined bound, run processor tests, etc. The response to problems discovered in any of these tests is a reset followed by a “safe state”.

Fine. Not rocket science, and very common. Easy, right? Well, yes, if your development process is checked for sanity…

A development detail: our chosen method of proving ROM validity is to add a 32-bit CRC to the end of each section of ROM that must be checked for validity. Each CRC is calculated at build time, and needs to wind up in ROM on the target microcontroller so that the software on the target can recompute the CRC at runtime on a periodic basis and compare its result to the precalculated CRC. If the value calculated at runtime doesn’t match the precalculated value stored in ROM, the ROM is considered invalid and remediation must occur. In our case, a reset followed by a “safe state”.

Problem 1: “How do I get that precalculated CRC into the ROM image for the target as part of the build process?” The easy answer is to insert it into the S-Record file that is used as input to the flash programmer or debugger when flashing the target. It’s easy because S-Record files are trivial to parse and many tools are readily available for this step of the process (Vector’s Hexview, the open source srec, et. al.). In our case, we’re using my own dwmhex tool that I wrote many years ago.

Problem 2: here’s where previous project ran into trouble. The debugger needs an ELF file when debugging. The S-Record file is absent of symbols and other information needed for productive debugging. We don’t modify the ELF file to add the CRC information (though we could, it’s been too long since I’ve used libelf for it to be a productive use of my time).

There must be a way to tell the debugger to load symbols and other debugging information from the ELF file but to flash the target with the S-Record file, right? Yes, of course. Any embedded debugger worth its salt provides this functionality.

Unfortunately, for some reason, previous projects were not aware of how to leverage this common debugger feature. Hence they always loaded only the ELF file in the debugger, and let the debugger translate the ELF when flashing the target. Big problem: the ELF doesn’t contain the precalculated CRC values, so if you let the code run, it will result in a reset. Quickly. Making debugging impossible.

The solution in previous projects? Preprocessor conditionals preventing the inclusion of the ROM CRC calculation and other test code in debug builds. This is terrible practice. A rough analogy: if you built a bridge, then drove an empty truck across it, would you then declare it good enough to handle a fully loaded truck? You can’t debug code that wasn’t even compiled into the image for the target. And as a general rule, you should avoid producing dramatically different code for release versus debugging when the debugger doesn’t work with release builds.

How we were bitten…

One of our young engineers was thrown into the project without proper guidance. He added the sanity-checking code, but he only tested using the debugger and a “debug” build. Because he had wrapped all of the sanity-checking code with preprocessor conditionals that excluded the sanity-checking code from “debug” builds (as done on previous projects), most of the code he had just added was completely untested; it didn’t even exist in the “debug” build. He committed the code, not knowing whether or not it actually worked for release builds. And as other team members were busy with other tasks (it was a development release week), no one noticed until about a week later when everyone updated their working copies, compiled a “release” build, and flashed their devices. And in the process, turned them into bricks. The resets were so frequent that it wasn’t even possible to reflash the parts via the bootloader. The bootloader would jump to the application and the application would reset nearly instantaneously.

Other team members reverted to earlier code so they could continue their work. I rolled up my sleeves and dug in my heels…

In the end, there were six different causes of resets in the code. It took me over a week to find and fix all of them. Our young engineer had assumed that we were already putting the CRC values into the S-Record files, which wasn’t true (we hadn’t added that to our build process yet). A set of assembly routines obtained from the microcontroller vendor for processor tests were committed without review, and unfortunately that code made some very egregious assumptions about how it could use RAM: it had hardcoded addresses for its RAM usage that caused it to stomp on our stack sentinel and we hence failed our stack test. etc.

But the bigger failure here was the violation of some fairly universal software tenets:

• Don’t create unnecessary differences between “debug” and “release” builds. It will waste precious development resources today or tomorrow, guaranteed.
• Unless prohibitively expensive to do otherwise, NEVER create release builds that have MORE code than debug builds. Or more accurately, don’t put code into a release build that isn’t readily debugged. Obviously, clicking on a few checkboxes in the debugger GUI does not qualify as prohibitively expensive, especially when it remembers your settings across debugging sessions (I’d call this essentially “free”).
• Trust and nurture your gut instinct. If you think, “There MUST be an easier way to do this…”, odds are good that you’re right. If the cost of not finding that way is anything above piddly, it’s your job as a software engineer to find that way. And it might be as easy as asking an engineer in the next aisle or blasting out an email. A specific example documented here: “There MUST be a way to tell the debugger to flash an S-Record file to the target while loading symbols and other debugging information from an ELF file!” You’re correct. Common problem with common solutions.
• Always question your processes. If something smells awful, it’s probably a turd. And as a cynical friend of mine likes to say, a polished turd is still a turd.
• Don’t throw your young engineers into a hot frying pan and then proceed to burn them to a crisp. Help them be successful!

It’s been ages since I’ve posted to my blog. But yesterday I found something in some code at work that prompted me to start a new set of posts.

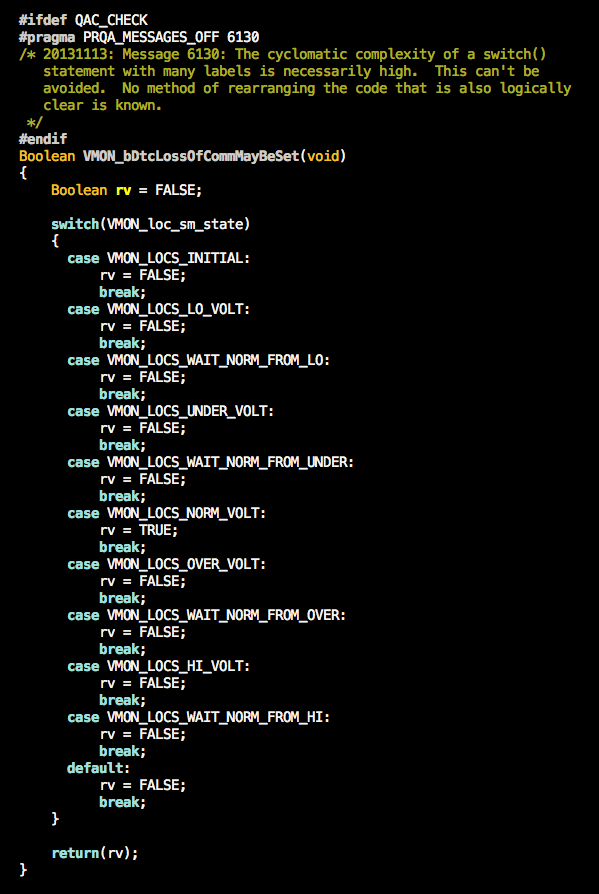

The following is an example of something gone awry and then never reviewed or repaired until someone “discovered” it (in this case, me). Since the original author of this bit of code no longer works for the company, I am not aware of the motivation for this original form. My best guess is that it was boilerplate code pasted into their editor of choice, then later committed without review or correction. Here’s the original code:

There are a few troubling things about this code. The first is that the logical equivalent, which I used to replace this code, is an easy to understand one-line function:

The second troubling thing is that only a few seconds were required to recognize the bad code and its replacement, and another few to type in the replacement. Even without my daily allowance of coffee, this falls into my 15-second refactoring category.

The third troubling thing is the suppression of QAC message 6130. QAC is a static analysis tool, one of several we use to find potential problems in our software. Message 6130 is for cyclomatic complexity. I’m not going to explain that here, I’m only going to point out that the general response to a warning from a static analysis tool should not be “Just suppress the warning.”

The last troubling thing is the clearly incorrect comment associated with the suppression of the static analyzer warning.

It’s easy to argue that any decent optimizing compiler would recognize the intent of the first version as being the same as the replacement, and produce equivalent assembly. And in fact the compiler we use did just that. That’s not the point. The points are really simple:

• Don’t force yourself and your coworkers to read 38 lines of mostly superfluous code when they could just read 1 very easy line.
• Don’t throw a blanket over the warnings from your static analyzer.
• Don’t commit boilerplate code (including a boilerplate suppression of a static analyzer warning with a clearly incorrect comment) without at least reviewing it. If it smells bad, it probably is bad, even if your static analyzer doesn’t flag it. Ask for a second pair of eyes. Make the code available for peer review.
• Don’t turn your brain off when putting comments in code. A grossly incorrect comment is considerably worse than no comment at all.
